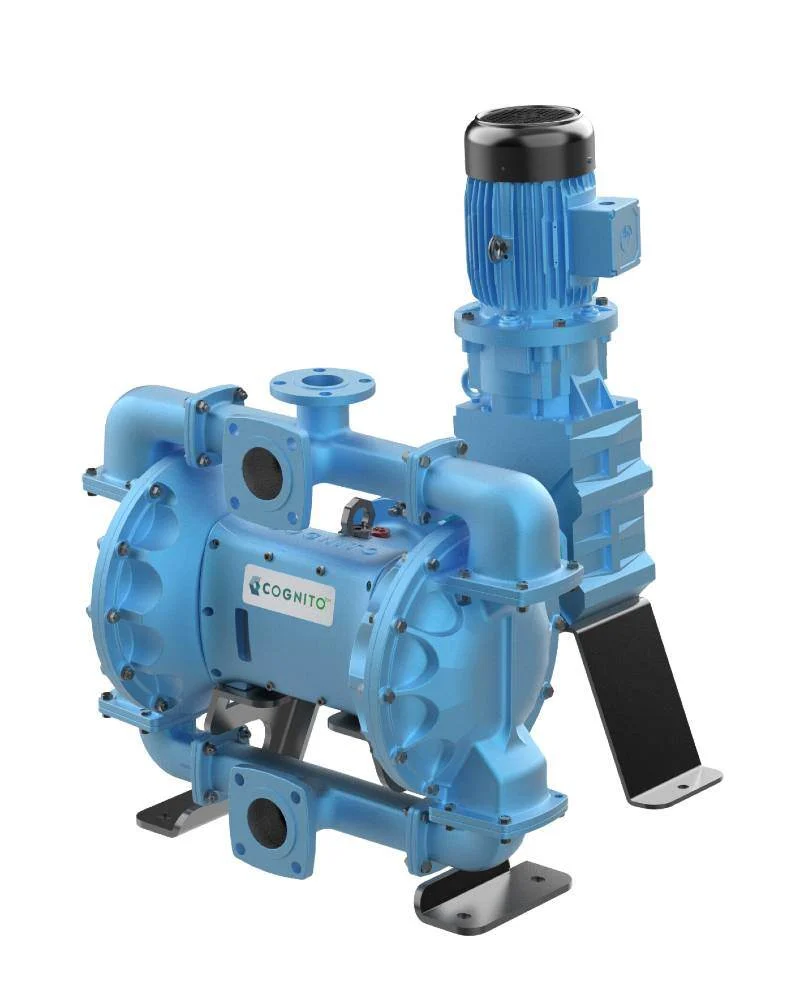

Cognito 50mm 2 inch Metallic EODD Pump - Electrically Operated Double Diaphragm

Cognito 50 mm (2") Metallic EODD Pump

The Cognito 50 mm (2") Metallic EODD Pump is a compact yet powerful Electrically Operated Double Diaphragm pump that delivers optimal flow rates with rugged durability. Powered by a 5 HP / 3.7 KW electric motor, this sealless pump eliminates the need for compressed air supply and delivers up to 75% energy savings over traditional AODD pumps. With patented oversized diaphragm design, hardened stainless steel stopper cages, dual shaft seals, and standard leak detection probes, the 50 mm EODD provides safe, efficient, and virtually maintenance-free fluid transfer.

Enquire Now WhatsApp Us

Manufactured by Warren Rupp Inc. (IDEX Corporation), the Cognito 50 mm Metallic EODD Pump is designed for the safe handling of a wide variety of fluids and slurries across industries including chemicals, paints & coatings, ceramics, pulp & paper, metals & mining, and pharmaceuticals. The electric drive eliminates compressed air infrastructure costs while providing consistent, controllable flow. Compatible with Cognito Pulsation Dampeners for smooth output and the Smart Insights IoT platform for 24/7 remote monitoring and preventive maintenance alerts.

Product Datasheet

Download 50 mm (2") Metallic EODD Pump Brochure

Detailed technical specifications, performance curves & selection guide

Download PDF PDF · ~2 MB
51
mm
Size
6
Bar
Pressure
5
HP / 3.7 KW
Power
Electrically
Pump Type

Specifications

Pump Type
Electrically Operated Double Diaphragm (EODD)
Construction
Metallic
Port Size
51 mm (2")
Motor Power
5 HP / 3.7 KW (for above 4 AMPS)
Max Discharge Pressure
6 Bar
Stopper Cages/Seats
Hardened Stainless Steel
Standard Elastomer
Santoprene
Shaft Seals
Dual Shaft Seals
Leak Detection
Standard (PLC compatible, auto shutoff)
Motor Orientation
Horizontal or Vertical
SPM Options
161 and 149 (contact for details)

Key Features & Advantages

Up to 75% Energy SavingsElectric drive eliminates compressed air consumption, delivering dramatic energy cost reductions over pneumatic AODD pumps
Sealless DesignNo mechanical seals to fail, leak, or maintain — eliminates the most common cause of pump downtime
Patented Oversized DiaphragmsLarger diameter with shorter stroke length extends diaphragm life and reduces pulsation
Self-Priming & Run-Dry CapablePrimes automatically and operates safely without fluid — no damage from dry running
Hardened SS Stopper CagesStainless steel construction reduces wear from solids-laden fluids and abrasive slurries
Dual Shaft SealsDouble protection for the pumping mechanism with secondary static seals preventing fluid contact
Standard Leak DetectionBuilt-in probes communicate to PLC with automatic shutoff capability for safe operation
IoT-ReadyCompatible with Cognito Smart Insights platform for 24/7 remote monitoring and preventive maintenance
No Compressed Air RequiredEliminates compressor infrastructure, air line installation, and associated maintenance costs
Virtually Maintenance-FreeDrive mechanism requires minimal maintenance, reducing total cost of ownership

Applications

Chemical & Specialty Chemical Transfer
Paints, Coatings & Inks
Dyes & Pigments
Ceramic Slurry Handling
Pulp & Paper Processing
Metals & Mining Operations
Pharmaceutical Manufacturing
Lithium Battery Production
Wastewater Treatment
Filter Press Feed
Tank-to-Tank Transfer
Spray Dryer & Decanter Feeding

Why Choose Target Marketing for Cognito EODD Pumps?

Authorized Cognito DealerOfficial channel partner with genuine product warranty and factory support from IDEX Corporation
Expert Pump SelectionTechnical team assists in selecting the right size, material, and elastomer based on your fluid and application requirements
Energy Savings AnalysisWe help quantify your potential savings when switching from AODD to EODD technology
Complete Spares & ServiceGenuine Cognito spare parts including diaphragm kits and wear components
End-to-End SupportFrom enquiry to installation, commissioning, and preventive maintenance

Need a Quote for 50 mm (2") Metallic EODD Pump?

Talk to our application engineers for hydraulic selection, MOC review and TCO comparison.

Request Quote +91 9624042143

Frequently Asked Questions

What is an EODD pump and how is it different from an AODD pump?

An EODD (Electrically Operated Double Diaphragm) pump uses an electric motor instead of compressed air to drive the diaphragms. This eliminates the need for a compressed air supply, delivers up to 75% energy savings, provides consistent flow rates, and offers IoT monitoring capability — advantages not possible with traditional AODD pumps.

The Cognito 50mm (2") Metallic EODD Pump uses a 5 HP / 3.7 KW electric motor for operations above 4 AMPS. The motor can be mounted horizontally or vertically depending on installation requirements.

Yes, the Cognito 50mm Metallic EODD Pump is run-dry capable. The sealless double diaphragm design means the pump can operate without fluid for extended periods without damage.

The Cognito 50mm Metallic EODD Pump delivers a maximum discharge pressure of 6 Bar, suitable for a wide range of industrial fluid transfer applications.

Yes, all Cognito EODD pumps are compatible with the Cognito Smart Insights IoT platform, which provides 24/7 real-time condition monitoring, remote health tracking, preventive maintenance alerts, and actionable insights from equipment data.
×
